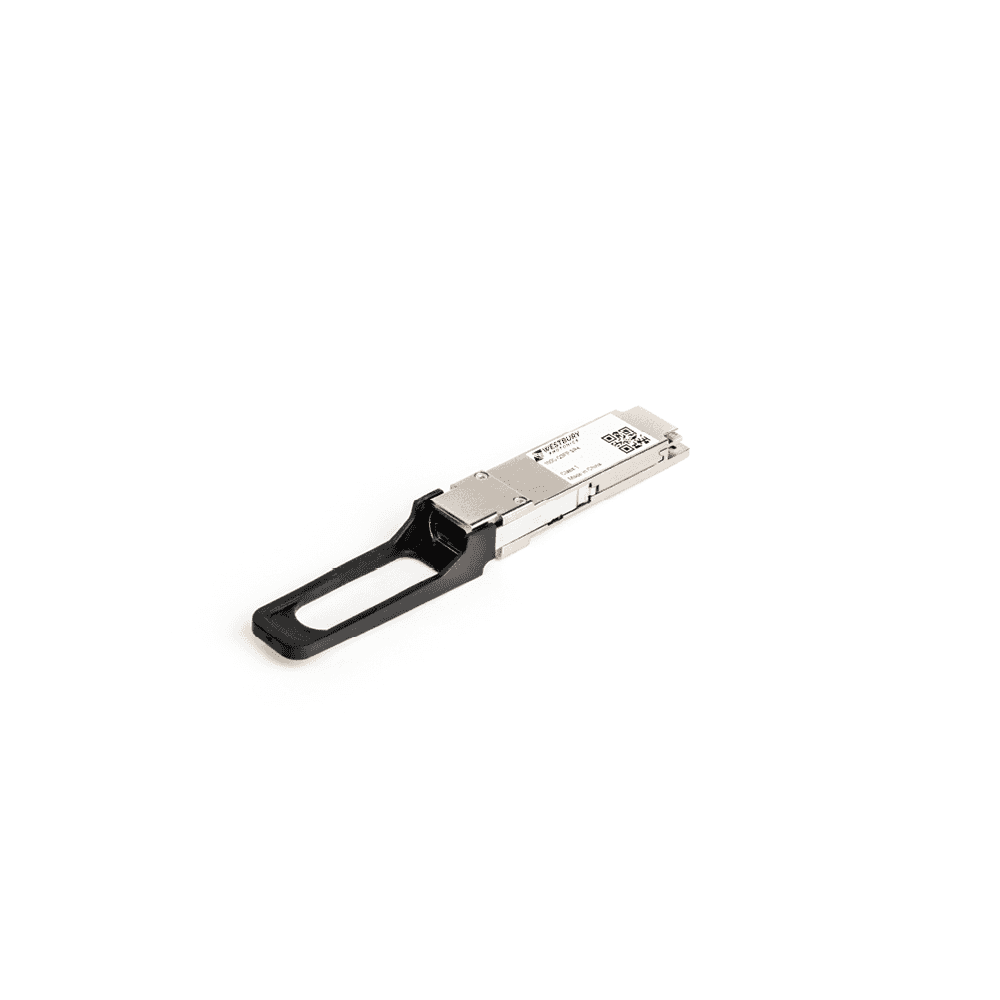

100G DR1 QSFP28 Optical Transceiver

100Gbase DR1

Code: 100G QSFP28 DR1 - G
Regular price £370.00 GBP
Regular price Sale price £370.00 GBP
Sale Sold out
Tax included.

Item in Stock | Usually dispatched within 24 hours

Designed using a 13010nm EML and single photodiode within an industry standard QSFP28 form factor. The electrical interface is based on IEEE802.3 CAUI-4 retimed interface. Supporting DR specifications, the 100Gbase DR1 QSFP28 module is ideally suited to 100G applications up to 500m distances where cost-effective high port density is required. The useful DDM functionality (alarm and warning features) is integrated into the design via an I2C serial interface as per the Multi-Source Agreement (MSA) SFF-8665.

Features • Supports 100Gb Ethernet • Optical Interface: 1x50GBaud (100Gb/s) PAM4 • Supports RS (544, 514) FEC coder/decoder functions • Uncooled EML laser (1310nm) and PIN photo detector • Operating temperature range 0°C to +70°C Tcase • Supports distances up to 500m across standard SMF (single mode fibre) • 3.3V power supply • Compliant with QSFP28 SFF-8665 MSA • IEEE 802.3/100G DR1 compliant • Digital diagnostic functions (via I2C) • Compliant with RoHS, UL & TUV • Power consumption:=4.5W • Wavelength: 1310nm (EML laser) • Temp: 0°C to 70°C • Reach: 500m over SM fibre Applications • 100Gb Ethernet • Datacentre (Datacentre)
