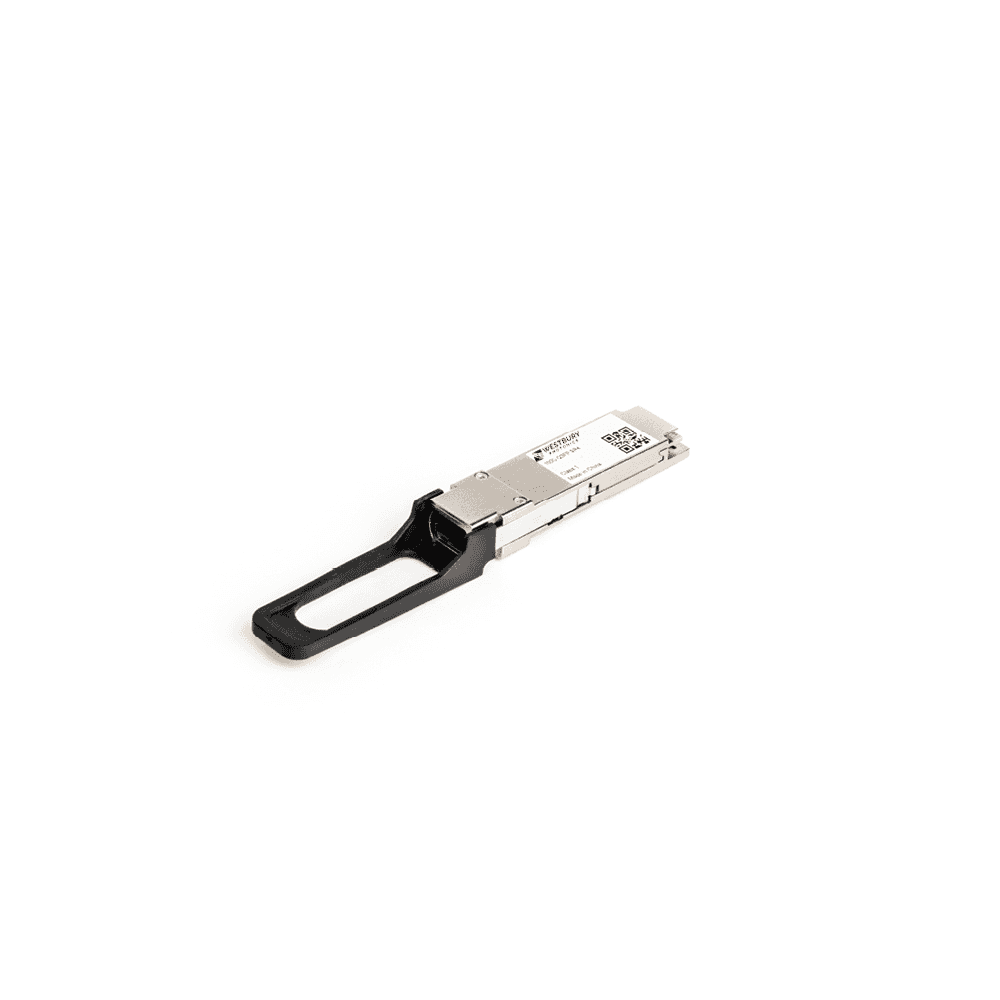

100G QSFP28 SR4 Transceiver

Code: 100G QSFP28 SR4 - G
Regular price £300.00 GBP
Regular price Sale price £300.00 GBP
Sale Sold out
Tax included.

Item in Stock | Usually dispatched within 24 hours

4x25Gb/s Pluggable 100G QSFP28 SR4 Optical Transceiver Module for short-range data communication and interconnect applications. The module has four bi-directional channels with an aggregate bandwidth of 112Gb/s. Each channel operates up to 25Gb/s and supports distances up to 100m across OM3 multimode or 300m of OM4 multimode fibre. The electrical interface is a and industry standard 38-contact edge type connector compliant with SFF-8636. The optical interface is a 12-fibre MPO connector.

Features: • Compliant with IEEE 802.3bm QSFP28 100GBASE-SR4 and CAUI-4 • Bi-directional operation: 4x Tx and 4x Rx at 25.78125Gb/s • Wide CDR locking range from 24G to 28G for various applications • Backward compatible with 10G and 40G applications • Enabled by 850nm VCSEL • 12-fibre MPO optical connector • Operating case temp. 0°C – 70°C • Per-channel power consumption500mW (including Tx, Rx, and CDR) • Transmission distance up to 100m with OM3 fibre and 300m with OM4 fibre • Laser Eye Safety Class 1 • DDMI function on Rx power, bias, temp, VCC, and Tx power (option) • Data Rate: 100G (4x25Gb/s) • Supply voltage: 3.3V • Module power consumption: 1.8W Applications • InfiniBand EDR interconnects • 100Gb Ethernet interconnects • Datacom and telecom switch connectivity • Router backplane connections • High performance computing
