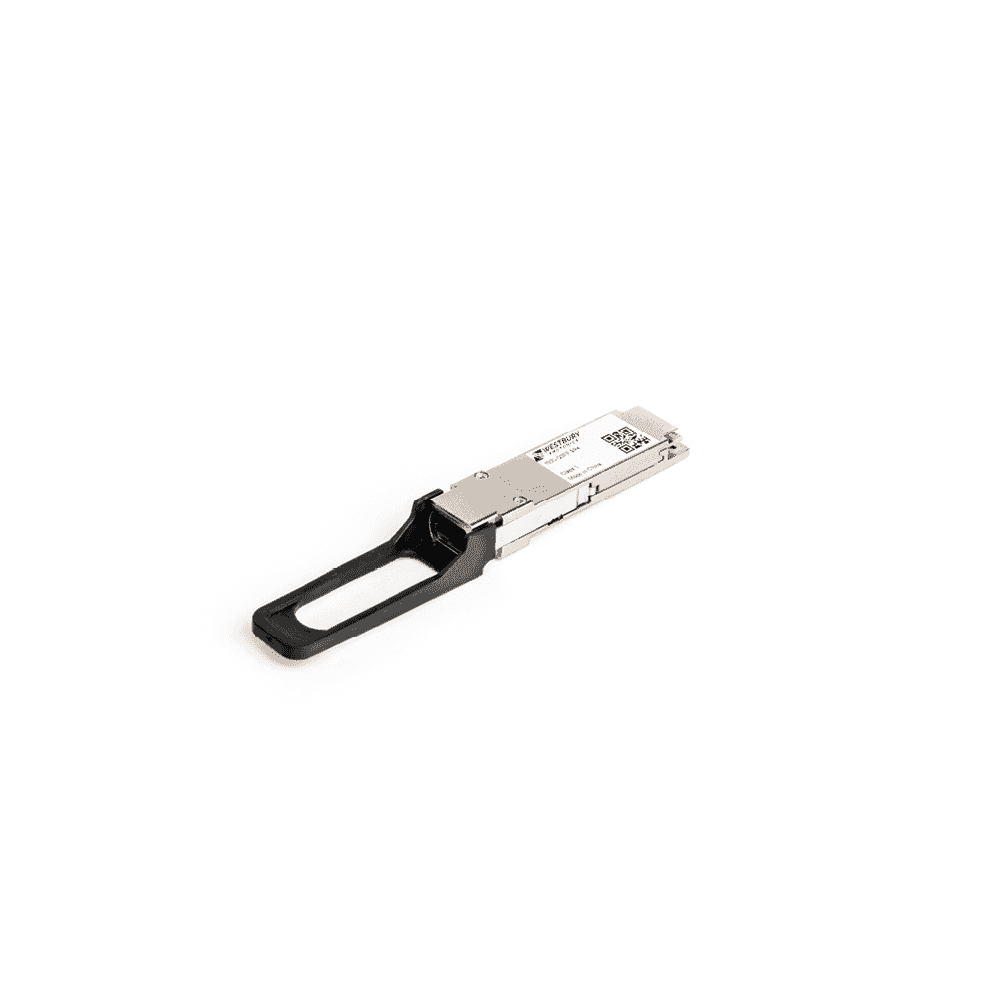

100G QSFP28 T ER4 Lite Transceiver

Compliant with IEEE 802.3ba ,IEEE 802.3bm, and SFF-8636

Code: 100GBASE-T-ER4 lite - G
Regular price £1,360.00 GBP
Regular price Sale price £1,360.00 GBP
Sale Sold out
Tax included.

Item in Stock | Usually dispatched within 24 hours

PRODUCT FEATURES ? Compliant with 100GBASE-ER4. ? Support line rates from 103.125 Gbps ? Integrated LAN WDM TOSA / APD ROSA, support 30km without FEC or 40km with FEC ? Digital Diagnostics Monitoring Interface ? Duplex LC optical receptacle ? No external reference clock ? Electrically hot-pluggable ? Compliant with QSFP28 MSA and 4WDM20_40 MSA with LC connector ? Case operating temperature range:0?C to 70?C ? Power dissipation < 5W APPLICATIONS ? 100G Ethernet &100GBASE-ER4 STANDARD ? Compliant to IEEE 802.3ba ,IEEE 802.3bm ? Compliant to SFF-8636

Westbury's 100G QSFP28 ER4 Lite optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4- EML with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single ?mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a APD and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and 2-wire serial interface. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3ba.

View full details
