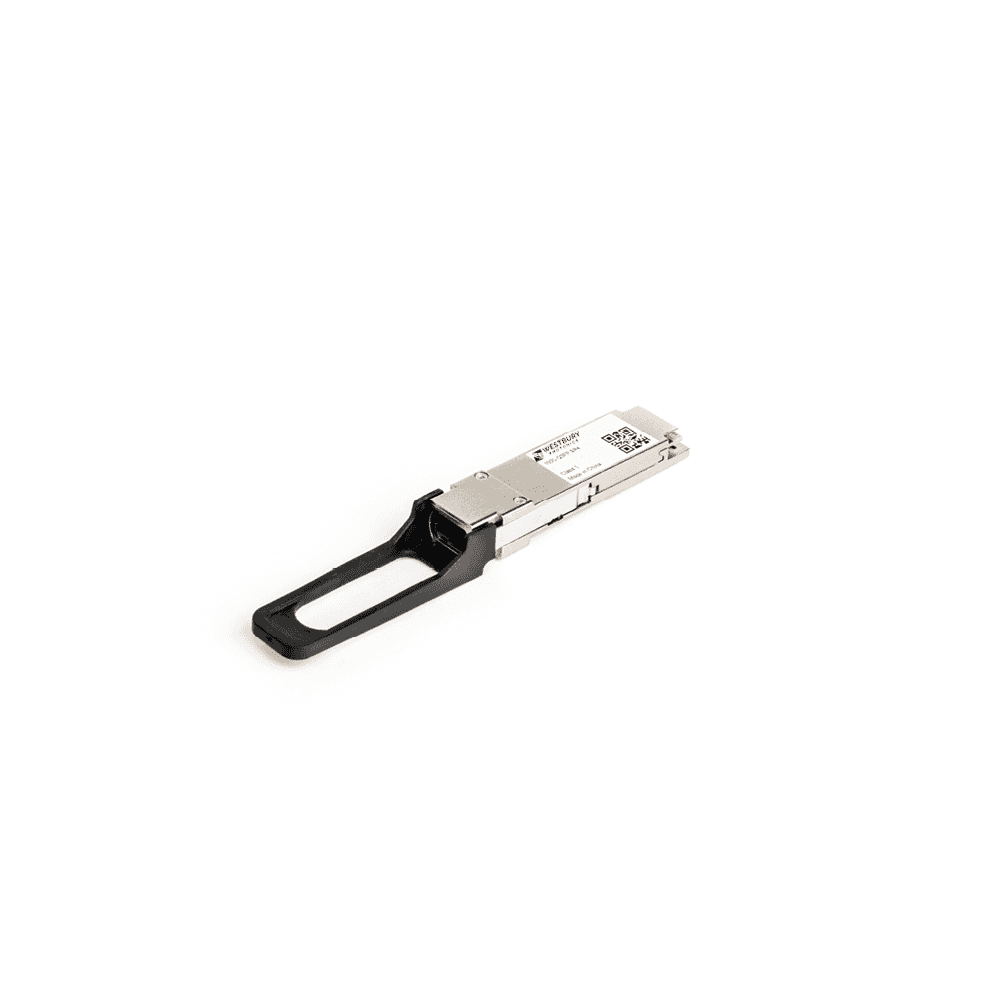

100G QSFP28 T LR4 Transceiver

Compliant with IEEE 802.3ba ,IEEE 802.3bm, and SFF-8636

Code: 100GBASE-T-LR4 - G
Regular price £306.00 GBP
Regular price Sale price £306.00 GBP
Sale Sold out
Tax included.

Item in Stock | Usually dispatched within 24 hours

PRODUCT FEATURES ? Compliant with 100GBASE-LR4 ? Support line rates to 103.125 Gbps ? Integrated LAN WDM DML TOSA / PIN ROSA for up to 10 km reach over SMF ? Digital Diagnostics Monitoring Interface ? Duplex LC optical receptacle ? No external reference clock ? Electrically hot-pluggable ? Compliant with QSFP28 MSA with LC connector ? Case operating temperature range:0 to 70?C ? Power dissipation < 4.5W APPLICATIONS ? 100G Ethernet STANDARD ? Compliant to IEEE 802.3ba ? Compliant to SFF-863

Westbury's 100G QSFP28 LR4 optical Transceiver integrates receiver and transmitter path on one module. The laser drivers control 4- Distributed Feedback Laser (DFB) with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single ?mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically demultiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a PIN photo-detector and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and 2-wire serial interface. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3ba.
