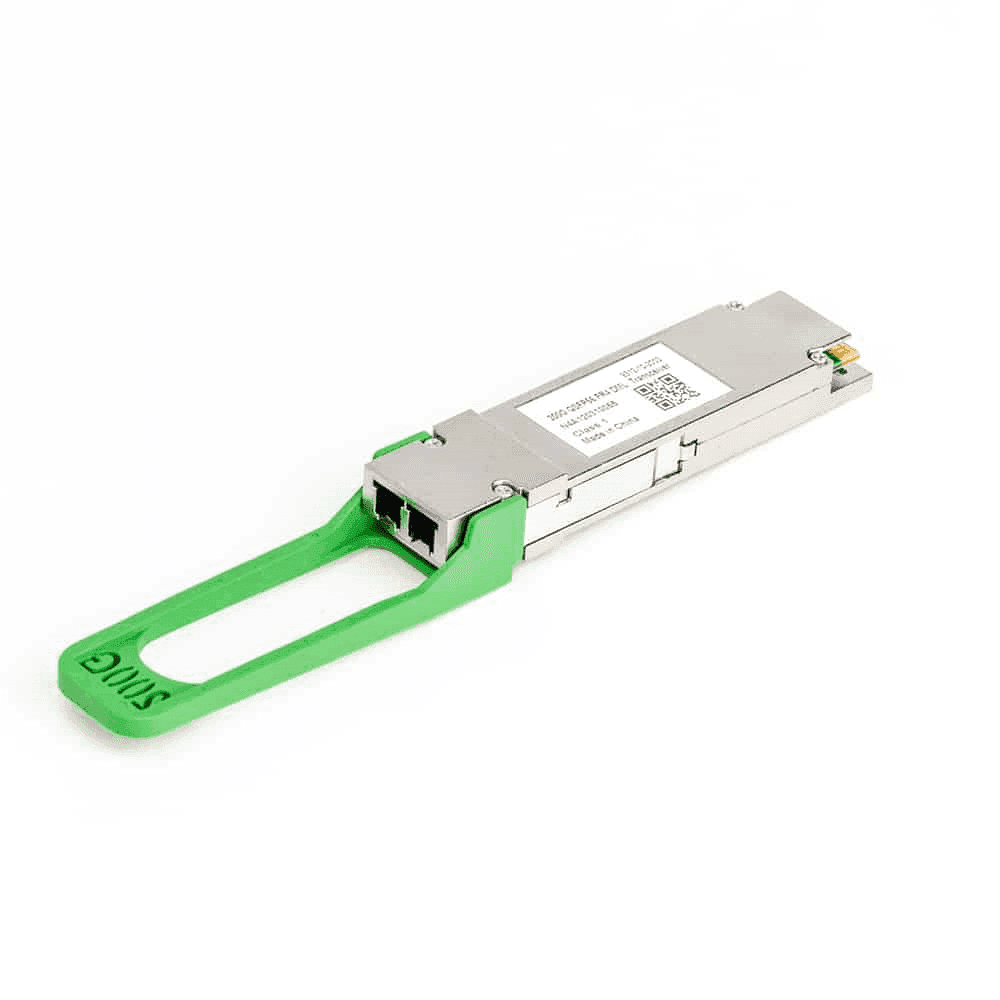

200G QSFP56 FR4 Transceiver

200G FR4

Code: 200G QSFP56 FR4 - G
Regular price £2,250.00 GBP
Regular price Sale price £2,250.00 GBP
Sale Sold out
Tax included.

Item in Stock | Usually dispatched within 24 hours

Our 200G MSA compliant QSFP56 FR4 modules are designed with 4 CWDM DFB lasers, 4 high speed photodiodes with a built-in optical MUX and DEMUX. The electrical interface to the module contains 4 independent electrical input/output channels each operating at 53.125Gb/s and based on 200G CAUI-4 in module retimed interface. The transmitter is based on DFB lasers designed for performance whilst being low cost and efficient in being low power consumption. This module is an excellent solution to your 200G data transmission requirements up to 2km across standard single-mode fibre. The integrated DDM functionality (alarm and warning features) is accessed via an I2C serial interface as per the Multi-Source Agreement (MSA) SFF-8665.
Compatible

Features: • Supports 200G (4x50Gb/s) PAM-4 transmission • Uncooled CWDM DFB laser and PIN photo detector • Operating temperature: 0°C to +70°C Tcase • Reach: up to 2km transmission across single-mode fibre and KP4 FEC at the host • 3.3V power supply • Power consumption:6W • Compliant with QSFP56 SFF-8665 MSA • Compliant with IEEE 802.3bs 200GBASE-FR4 Ethernet • Digital diagnostic functions (via I2C) • Compliant with RoHS, UL & TUV • Aggregate data rate: 200Gb/s • Wavelength: 1270 / 1290 / 1310 / 1330nm DML Applications: • 200Gb Ethernet • Datacentre connectivity • 5G connectivity
